Water Disribution Pipes
Industrial Cleaning Machines
Sterillzers, Boilers
Air conditioners, Water Fiters
Medical Equpments, Vacuum Packing
Food & Beverage Lines
Vacuum Distribution Pipes |
 |
|
|
|
 |
|

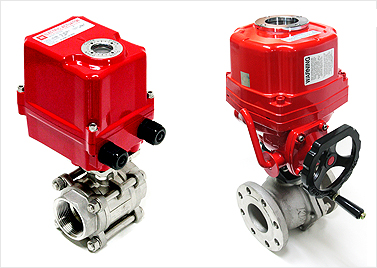

| TYPE |
A-TYPE |
B-TYPE |
C-TYPE |
| VALVE SIZE |
8A ~ 50A |
15A ~ 50A |
15A ~ 350A |
| ACTATOR MODEL |
DI-HQ006 |
DI-HQ006 |
HQ-008-HQ300 |
| BODY Material |
SUS 316 |
SCPH2 / SCS13 / SCS14 / SCS16 |
| BALL Material |
SUS 316 |
SCS13 / SCS14 / SCS16 |
| SEAT Material |
RTFE |
PTFE, RTFE, GRAPHITE, PEEK, METAL |
| Rating Type |
SCREW |
R.F FLANGE TYPE |
| ACTUATOR Type |
Electric |
| Elecrical |
AC110V,AC 220V. AC380V, AC440V |
| Operating Pressure |
ON/OFF, Modulating |
| Rotating Angle |
90′± 3' |
| Fluid Temp |
10 ~ 90℃ (-10 -- 300'C) |
| Pressure Range |
10,20 ㎏f/㎤ / 150#, 300# |
|
|
|
 |
| |
|
|
 |
|
|
|
Water Disribution Pipes
Industrial Cleaning Machines
Sterillzers, Boilers
Air conditioners, Water Fiters
Medical Equpments, Vacuum Packing
Food & Beverage Lines
Vacuum Distribution Pipes |
 |
|
|
|
|
|

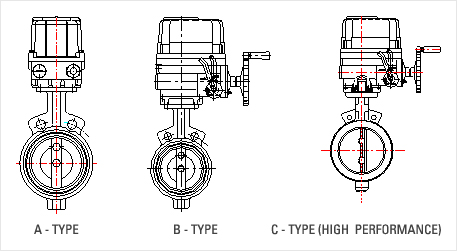

| TYPE |
A-TYPE |
B-TYPE |
C-TYPE |
| VALVE SIZE |
40A ~ 80A |
40A ~ 600A |
50 ~ 600 |
| ACTATOR MODEL |
DI-HQ006 |
DI-HQ006~ HQ300 |
|
| BODY Material |
ADC / FC / SCPH2 / SCS13 / SCS14 / SCS16 |
| DISC Material |
SCS13 / SCS14 / SCS16 |
| SEAT Material |
EPDM/PTFE/RTFE/ MATEL |
| Rating Type |
WAFER TYPE |
| ACTUATOR Type |
Electric |
| Elecrical |
AC110V,AC 220V. AC380V, AC440V |
| Operating Pressure |
ON/OFF, Modulating |
| Rotating Angle |
90′± 3' |
| Fluid Temp |
10 ~ 90℃ |
| Pressure Range |
10㎏f/㎤ / 150# |
|
 |
|
|
 |
|
|
