| Model No. : |
DI-AP D/S 3BA
Cast Steel Body
304 Stainless Steel Body
316 Stainless Steel Body |
|
|
|
|
Design Description :
Actuators : Cylinder
Valve Size : 15A ~ 300A (1/2B~16B) |
| |
| Pressure Rating : |
KS 10K ~ 20K
ANSI 150LB ~ 300LB |
|
| |
Connection : Flanged, Welding
Operating Temperature : -50 °C~290 °C |
| |
| Materia : |
Body : SCS13 , SCS14
Ball : SCS13 , SCS14
Seat : PTFE, RTFE, Metal Seat |
|
|
|
| |
 |
| |
 |
| |
|
|
|
|
|
 |
|
 |
|
|
High Quality lnvestment Casting Body and Caps. |
|
ISO-5211 Mounting Top Flange for Actuator & Square Stem. |
|
Pressure temperature Rating:1000PSI(PN63)/232 deg. C |
|
15% Reinforced Glass fibre Teflon seats. |
|
Blow-out proof stem SS316, Adjustable Stem Packing. |
|
100% tested air-under water at 100 PSI(6 Bars) open & close position. |
|
Locking Device, Teflon 4 Seats Design. |
|
OPTIONT : Pneumatic actuator or electric actuator. |
| |
|

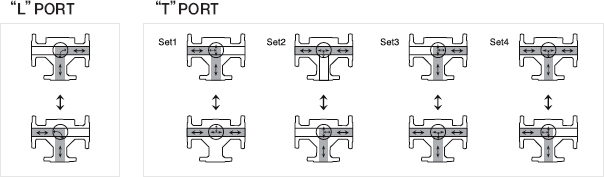

| TYPE / POSITION |
1 |
2 |
3 |
4 |
| L |
 |
 |
|
|
| T |
 |
 |
 |
 |
|
|
|
| |
 |
|
 |
| |
 |
|
 |
|
 |
|
|
|

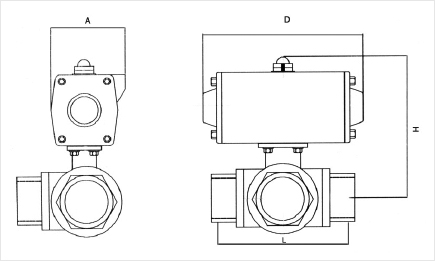

| SIZE |
ACTUTOR |
A |
D |
L |
H |
| 1/4″ |
AP 1 SR |
109 |
137 |
72 |
129 |
| 3/8″ |
AP 1 SR |
109 |
137 |
72 |
129 |
| 1/2″ |
AP 1 SR |
109 |
137 |
83 |
130 |
| 3/4″ |
AP 1 SR |
109 |
137 |
99 |
138 |
| |
AP 2 SR |
125 |
150 |
99 |
155 |
| 1″ |
AP 2 SR |
125 |
150 |
112 |
160 |
| 1-1/4″ |
AP 3 SR |
150 |
204 |
125 |
170 |
| 1-1/2″ |
AP 3 SR |
150 |
204 |
149 |
196 |
| 2″ |
AP 3.5 SR |
160 |
204 |
174 |
225 |
|
|
| SIZE |
ACTUTOR |
A |
D |
L |
H |
| 1/4″ |
AP1DA |
109 |
137 |
72 |
129 |
| 3/8″ |
AP1DA |
109 |
137 |
72 |
129 |
| 1/2″ |
AP1DA |
109 |
137 |
83 |
130 |
| 3/4″ |
AP1DA |
109 |
137 |
99 |
138 |
| |
AP2DA |
125 |
150 |
99 |
155 |
| 1″ |
AP2DA |
125 |
150 |
112 |
160 |
| 1-1/4″ |
AP3DA |
150 |
204 |
125 |
170 |
| 1-1/2″ |
AP3DA |
150 |
204 |
149 |
196 |
| 2″ |
AP3DA |
160 |
204 |
174 |
225 |
|
|
|
 |
 |
| |
 |
|
 |
|
 |
| |
 |
|
Water Disribution Pipes
Industrial Cleaning Machines
Sterillzers, Boilers
Air conditioners, Water Fiters
Medical Equpments, Vacuum Packing
Food & Beverage Lines
Vacuum Distribution Pipes |
| |
 |
|
| TYPE |

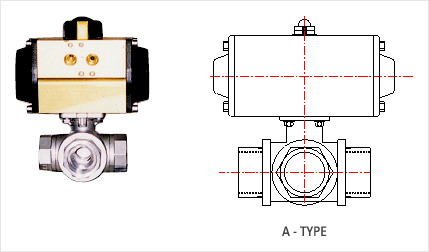

A -TYPE |

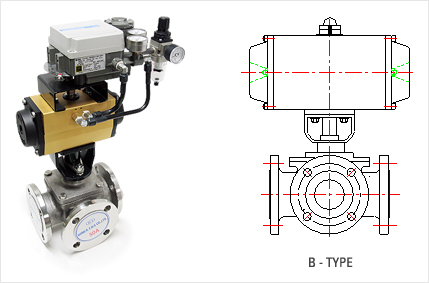

B-TYPE |
| VALVE_ SIZE |
8A ~ 50A |
15A ~ 300A |
| ACTUATOR |
DI-AP TYPE |
DI-AP TYPE |
| BODY Material |
SUS 316 |
SCS13/SCS14/SCS16 |
| BALL Material |
SUS 316 |
SCS13/SCS14/SCS16 |
| SEAT Material |
RTFE |
PTFE, RTFE, GRAPHITE, PEEK, METAL |
| Rating Type |
SCREW |
R.F FLANGE TYPE |
| ACTUATOR Type |
DOUBLE ACTING / SPRING RETURN |
| Operating Pressure |
4-7㎏f/㎝２ |
| Rotating Angle |
90′± 3' |
| Fluid Temperature |
10 ~ 90℃ (-20 ~ 290'C) |
| Operating Media |
Compressed Dry Air |
| Accessory (옵션) |
Solenoid valve, Limit switch (Box,Lever) Air Set, E-P Positioner |
|
|
|
 |
| |
|
|
 |
| |
|
|
Water Disribution Pipes
Industrial Cleaning Machines
Sterillzers, Boilers
Air conditioners, Water Fiters
Medical Equpments, Vacuum Packing
Food & Beverage Lines
Vacuum Distribution Pipes |
| |
|
|
| TYPE |
A -TYPE |
| VALVE_ SIZE |
50A ~ 200A |
| ACTUATOR |
DI-AP TYPE |
| BODY Material |
SCPH2/SCS13/SCS14/SCS16 |
| BALL Material |
SCS13/SCS14/SCS16 |
| SEAT Material |
PTFE, RTFE, METAL |
| Rating Type |
FLANGE TYPE |
| ACTUATOR Type |
DOUBLE ACTING / SPRING RETURN |
| Operating Pressure |
4-7㎏f/㎝２ |
| Rotating Angle |
90′± 3' |
| Fluid Temperature |
10 ~ 90℃ (-10 ~ 290'C) |
| Operating Media |
Compressed Dry Air |
| Accessory (옵션) |
Solenoid valve, Limit switch Box, Air fileter REgulator, E-P Positioner |
|
|
 |
|
|
 |
|
|
