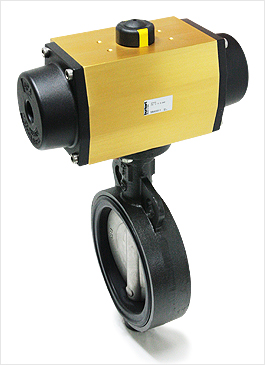

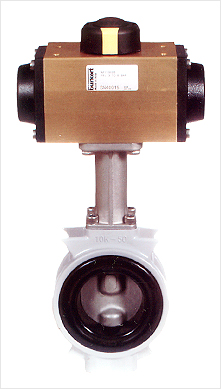

Design : Rack and pinion type
Function : Double acting or spring return
Max. press : 10 bar
Temperature : -20 + 100 c
Materials :
Body : Extruded aluminium alloy, gold anodized
End cap : Pressure die cast aluminium alloy, black epoxy coated
Pinion : Carbon Steel, zinc plated
Piston : Pressure die cast aluminium alloy, natural
Guide : Acetal resin, natural
‘O’rings : nitrile rubber (Buna N), 50 IRHD
Springs : Spring steel, zinc plated
End cap bolts : Carbon steel, zinc plated
(For more details of actuators, please refer to Burkert Rotary
Actuator Data Sheets) |
|
Position feedback limit switches, Pilot solenoid valves,
I/P positioners, Gear box manual override, Stroke limiters,
3 positions pneumatic actuators. |
|
| |

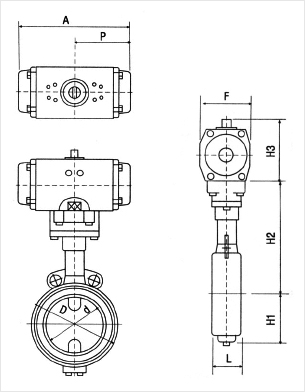

| Nominal Size |
|
Double Acting |
Spring Retum |
| [mm] |
[inch] |
B |
L |
D |
H1 |
H2 |
H3 |
A |
P |
F |
Actuator |
wt.[kg] |
H3 |
A |
P |
F |
Actuator |
wt.[kg] |
| 50 |
2 |
52 |
43 |
93 |
58 |
157 |
103 |
150 |
75 |
73 |
AP2DA |
2.8 |
120 |
204 |
102 |
85 |
AP3 SR |
4.3 |
| 65 |
2.5 |
65 |
46 |
64 |
64 |
163 |
103 |
150 |
75 |
73 |
AP2DA |
3.0 |
120 |
204 |
102 |
85 |
AP3 SR |
4.6 |
| 80 |
3 |
78 |
46 |
78 |
78 |
176 |
120 |
204 |
102 |
85 |
AP3DA |
4.4 |
145 |
271 |
135.5 |
110 |
AP4 SR |
7.8 |
| 100 |
4 |
100 |
52 |
90 |
90 |
186 |
120 |
204 |
102 |
85 |
AP3DA |
5.0 |
145 |
271 |
135.5 |
110 |
AP4 SR |
8.5 |
| 125 |
5 |
125 |
56 |
107 |
107 |
204 |
130 |
230 |
115 |
98 |
AP3.5DA |
8.1 |
172 |
305 |
152.5 |
128 |
AP4.5 SR |
13.7 |
| 150 |
6 |
150 |
56 |
119 |
119 |
216 |
145 |
271 |
135.5 |
110 |
AP4DA |
11.3 |
185 |
360 |
180 |
140 |
AP5 SR |
16.1 |
| 200 |
8 |
195 |
60 |
167 |
167 |
250 |
172 |
305 |
152.5 |
128 |
AP4.5DA |
16.5 |
206 |
380 |
190 |
160 |
AP5.5 SR |
22.0 |
| 250 |
10 |
245 |
68 |
197 |
197 |
285 |
185 |
360 |
180 |
140 |
AP5DA |
25.9 |
230 |
462 |
231 |
175 |
AP6 SR |
37.4 |
| 300 |
12 |
297 |
78 |
240 |
240 |
324 |
230 |
462 |
231 |
175 |
AP6DA |
30.4 |
300 |
530 |
265 |
215 |
AP8 SR |
63.7 |
|
|
 |
| |
 |
|
 |
| |
 |
 |
|
|
 |
 |
Design Description :
Actuators : Cylinder & Diaphragm
Valve Size : 100A ~ 1,500A (1/2B~16B)
Pressure Rating : MAKER STD
Connection : Flanged |
| |
| Operating Temperature : |
-50 °C~230 °C
Option: -196 °C~815 °C |
|
| |
Material
Body : SS, SUS304, SU316 |
|
|
|
|
 |
|
 |
| |
|
|
|
|
 |
|
Design Description :
Actuators : Cylinder & Diaphragm
Valve Size : 40A ~ 1,000A (2B~40B) |
| Pressure Rating : |
KS 10K ~ 20K
ANSI 150LB ~ 300LB |
|
| |
Connection : Wafer, Flanged, etc.
Operating Temperature : Max 180°C |
| |
Material
Body : FC , SCPH2 , SCS 13 , SCS 14 |
|
|
|
|
 |
|
 |
| |
|
|
|
|
 |
|
Design Description :
Actuators : Actuator & Diaphragm
Valve Size : 40A ~ 600A (3B~36B) |
| |
| Pressure Rating : |
KS 10K ~ 20K
ANSI 150LB ~ 300LB |
|
| |
Connection : Water, Lug, Flanged
Operating Temperature : -120°C~600°C |
| |
| Materia : |
Body : FCD-S , SCPH2 , SCS13 , SCS14
Seat : PTFE, RPTFE, Metal Seat |
|
|
|
| |
 |
|
 |
|
 |
| |
 |
|
Water Disribution Pipes
Industrial Cleaning Machines
Sterillzers, Boilers
Air conditioners, Water Fiters
Medical Equpments, Vacuum Packing
Food & Beverage Lines
Vacuum Distribution Pipes |
| |
 |
|
| TYPE |

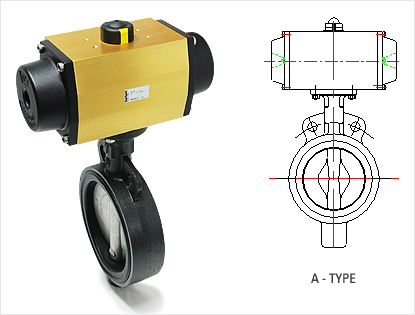

A -TYPE |
B-TYPE |
| VALVE_ SIZE |
40A ~ 600A |
40A ~ 600A |
| MODEL |
DI-AP BF |
DI-AP BF |
| BODY Material |
ADC/FC/SCPH2/SCS13/SCS14 |
FCD-S/SCS13/SCS14/SCS16 |
| DISC Material |
SCS 13/SCS14/SCS16 |
SCS13/SCS14/SCS16 |
| SEAT Material |
NBR, PTFE |
RTFE, MTEAL |
| BODYType |
WAFER, LUG ,R.F |
| RATING Type |
JIS 10K, ANSI 150# |
| ACTUATOR Type |
DOUBLE ACTING / SPRING RETURN |
| Operating Type |
4-7㎏f/㎝２ |
| Rotating Angle |
90′± 3' |
| Fluid Temperature |
10 ~ 300℃ |
| Operating Media |
Compressed Dry Air |
| Accessory (옵션) |
Solenoid valve, Limit switch (Box,Lever) Air Set, E-P Positioner |
|
|
 |
|
|
 |
|
|
